Description

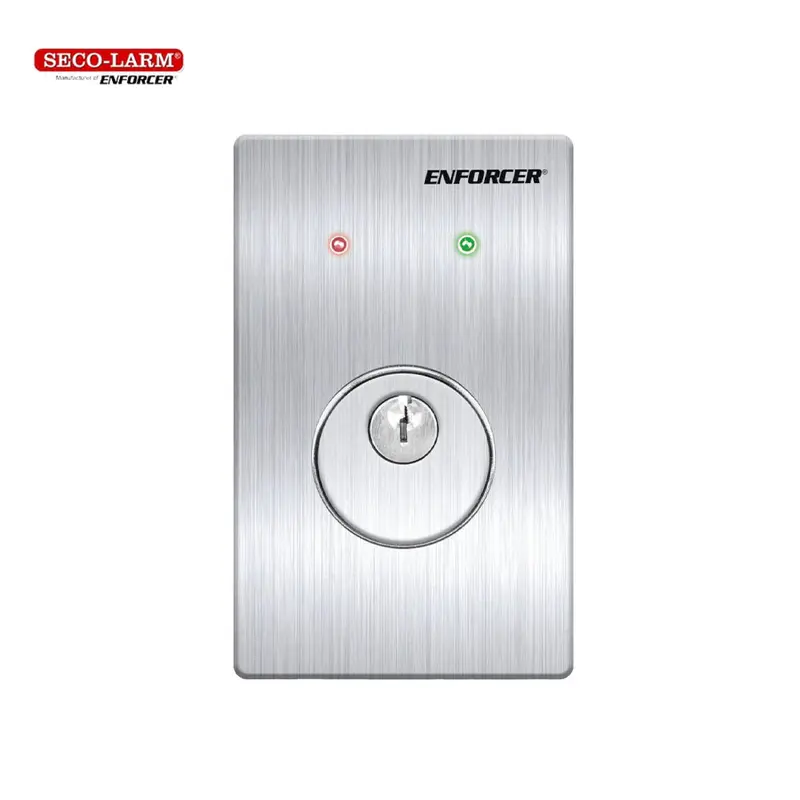

SECO-LARM SD-72231-6MQ Maintained Mortise Cylinder Key Switch with Dual LEDs for Access Control
Features:
- Keyed mortise cylinder (2 keys included)
- Removable mortise cylinder for ease of keying
- Red (standby) and green (triggered) LED indicators
- Flush mount with vandal-resistant security screws
- Chrome-plated aluminum back plate fits standard single-gang box
- Stainless steel front cover conceals mounting screws
- DPDT contact rating: 25A @ 24VAC
- Color-coded wires for easy installation
- Maintained output function
Specifications:
| Output | Maintained |
| Switch Type | DPDT Switch |
| LED Indicators | Red (standby) and Green (triggered) |
| Contact Switch | 25A @ 24VAC, NO/NC |
| Dimensions | 2-3/4″ x 4-1/2″ x 1-7/16″ (69 x 114 x 37 mm) |
Downloads:
- Product Information
- Manual
