Forward Lift Cra14 14,000 Lb Four-Post Alignment Lift – Closed-Front Configuration

Description

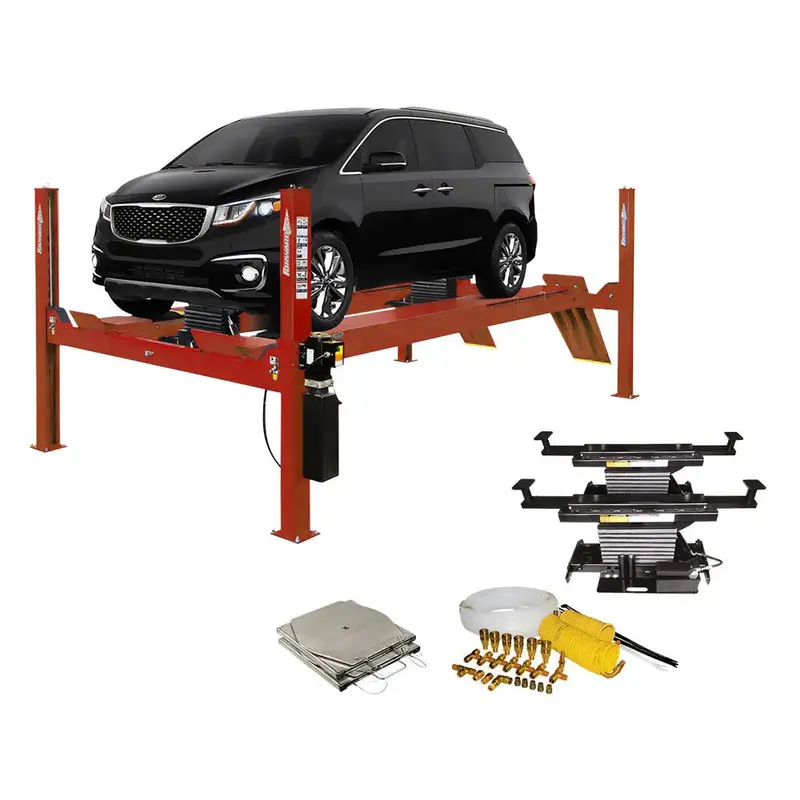

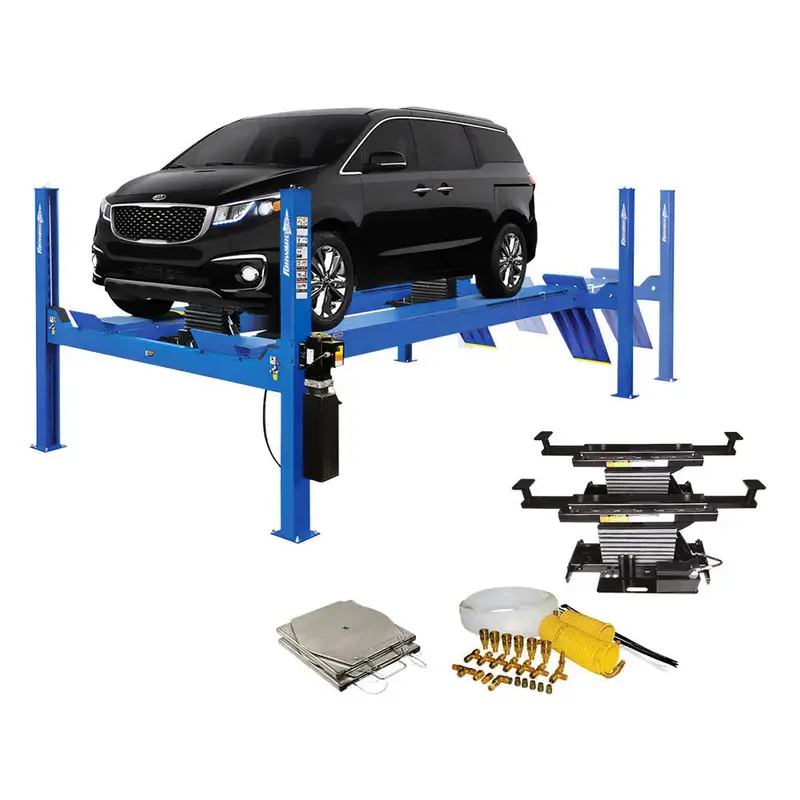

Looking for a top-quality alignment lift? Look no further than the CRA14 from Forward Lift. This 14,000 lb capacity lift is perfect for any shop, with a 166″ max 2-wheel alignment and 250″ overall length. Plus, it comes with two 7,000 lbs rolling jacks, a pair of steel turntables, and an air line kit. And you can choose from two great colors: red or blue. So don’t wait any longer; order your CRA14 today!

Features:

• Heavy-duty hydraulic cylinder
• Internal airline standard
• Single Point latch release system
• One piece formed runway design incorporates rolling jack channels
• Multiple position latch points in each structural leg
• Rear wheel slip plates standard

Specs:

Capacity: 14,000 lbs. (6350kg)
Minimum Four Wheel Alignment: 88in (2235mm)
Maximum Wheelbase: 182-1/2in (4635mm)
Maximum Two Wheel Alignment: 166-1/4in (4225mm)
Maximum Four Wheel Alignment: 157in (3987.8mm)
Minimum Bay Size: 15ft x 26ft (4572mm x 7925mm)
Rise: 80-3/4in (2000mm)
Overall width: 131-3/4in (3346mm)
Overall length: 250in (6350mm)
Length between Columns: 195-1/4in (4959mm)
Width Inside Columns: 116-1/4in (2953mm)
Overall height: 90-1/2in (2281mm)
Runway width: 20in (508mm)
Runway Height: 9in (228mm
Width Between Runways: 43in (1092mm) or 46in (1168mm)
Front of Runway to Center of Radius Gauge: 22-11/16in to 52-11/16in (576mm-1338mm)
Rise Time: 72 seconds
Motor: 2HP
Ref No.:CRA14N201YBL
CRA14N201YRD
CRA14L
CRA14BL
CRA14RD
