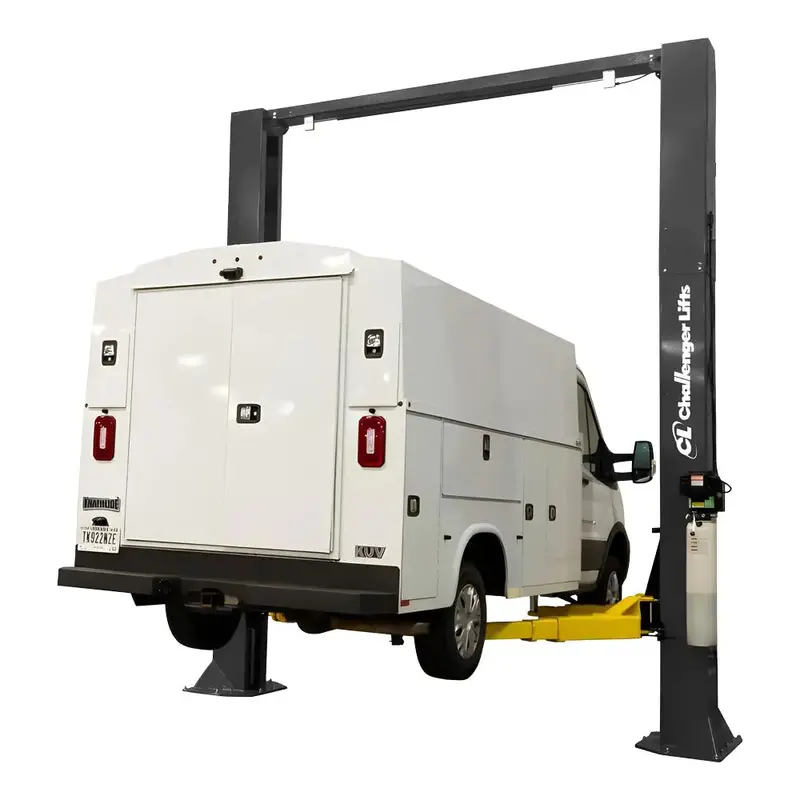

Challenger Cl16 Standard Symmetric Two-Post Lift – 16,000 Lb Capacity

Description

Looking for a versatile and reliable two-post lift for cargo vans and commercial vehicles? Challenger Lift’s CL16-0-3S 16K Heavy-Duty Two-Post Lift offers adjustable installation options for height, width, and depth, ensuring compatibility with a wide range of vehicles, including cargo vans. Featuring 3-stage front and rear arms, it provides superior vehicle access and safety for demanding fleet maintenance. ALI® Certified, this lift is built to last, saving you time and money while enhancing shop efficiency. Ideal for automotive shops and fleet service centers, it’s the ultimate solution for handling heavy-duty vehicles with ease.

Features:

• 16,000 lbs. capacity for heavy-duty vehicles and cargo vans
• Adjustable installation for height, width, and depth options
• 3-stage front and rear arms for easy vehicle access
• ALI® Certified for top industry safety and quality standards
• Built to last, reducing downtime and maintenance costs
• Ideal for fleet maintenance and commercial service centers
• Low-profile pickup pads for various vehicle types
• Perfect for automotive shops and demanding vehicle servicing

Specs:

Description: 16K Standard
Lifting Capacity: 16,000 lbs.
Lift Configuration: Symmetric
Arm Configuration: 3-Stage Front/Rear
Maximum Load Per Arm: 4,000 lbs.
Rise Height (Maximum with Stack Adapters): Min. 75.5in Max. 81.5in
Overall Height Options: 162in, 168in, 174in
Overall Width Options: 166.75in, 160.75in, 154.75in
Drive-Thru Clearance: 104.25in, 110.25in, 116.25in
Floor to Overhead Switch: 155in, 161in, 167in
Arm Reach: Min. 36.625in Max. 75in
Screw Pad Height: Min. 5in Max. 6.5in
Between Columns: 120in, 126in, 132in
Motor/Voltage: 3HP, 1Ph, 60Hz, 208/230v
Air Supply Required: 90-120 psi
Rise Time: 62s
Min. Ceiling Height Required: 13ft 8in, 14ft 2in, 14ft 8in
Ref No.
CL16-3S
Similar Products
CL16-2-3S (Extended)
Ref Name
Heavy-Duty Two-Post Lift
16K Automotive Lift
Adjustable Two-Post Lift
Cargo Van Lift

Application:

Automotive Shops
Fleet Maintenance
Cargo Van Servicing
Commercial Service Centers
Vehicle Repair
For Vehicles:
Cargo Vans
Pickup Trucks
SUVs
Light Trucks
