Description

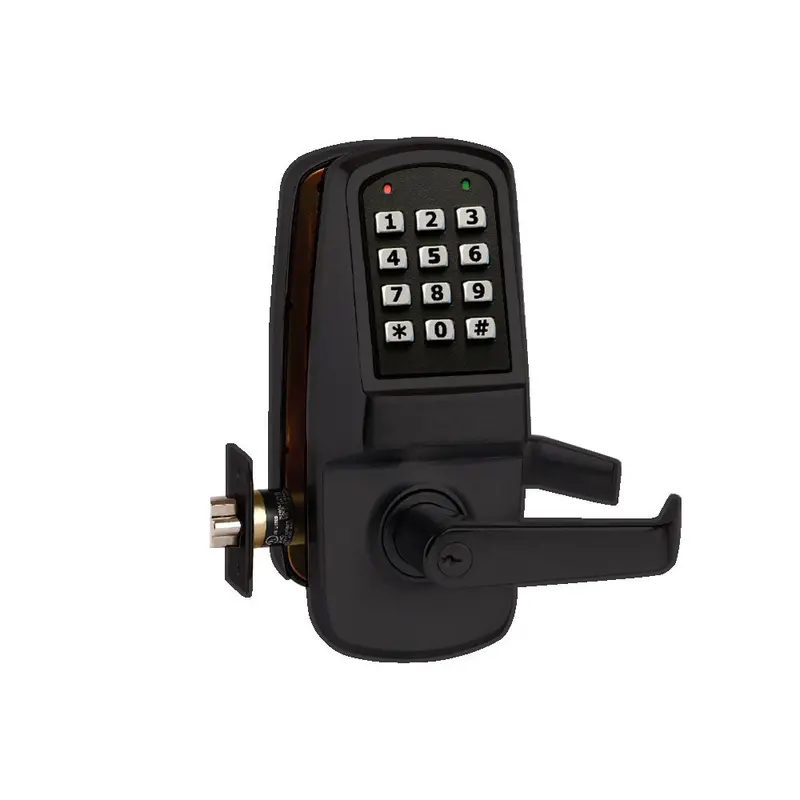

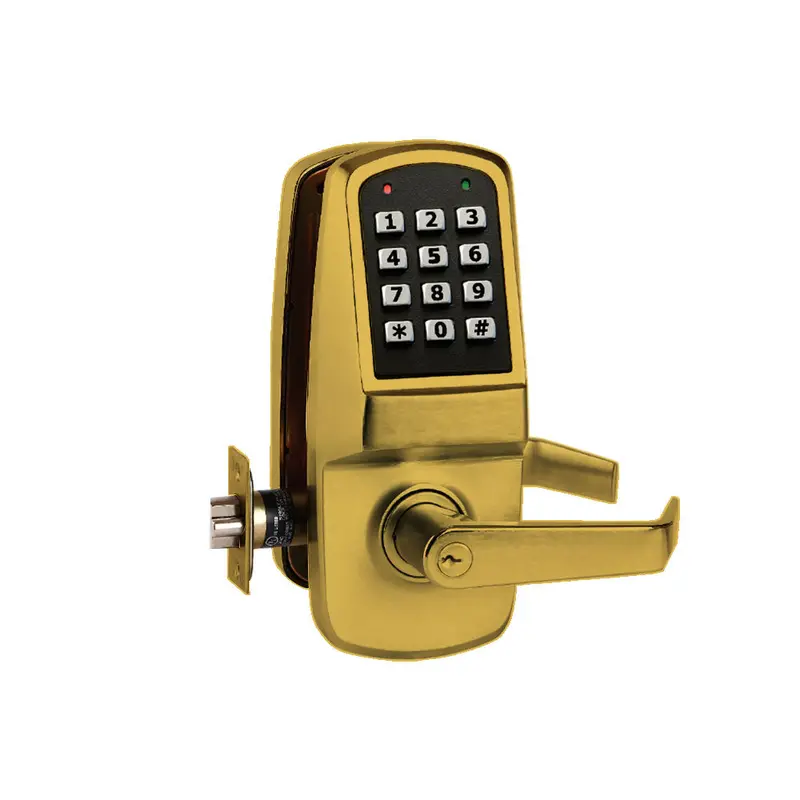

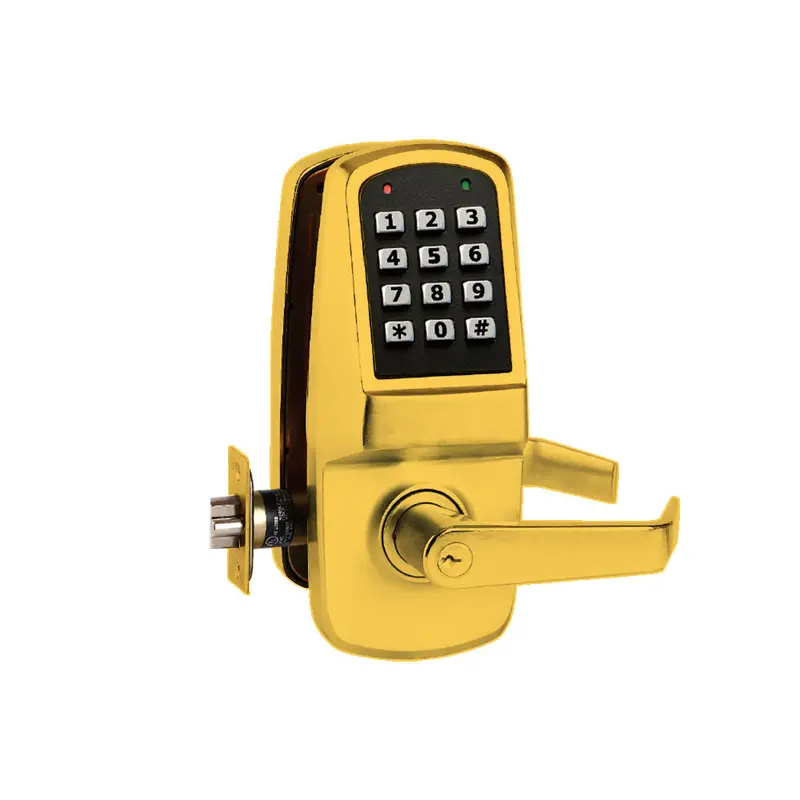

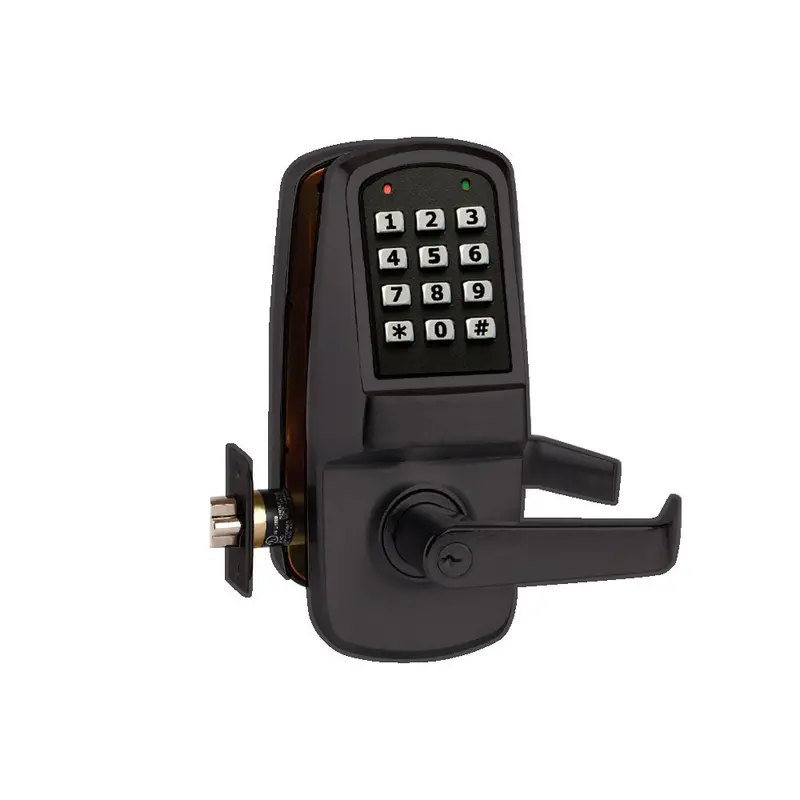

Cal-Royal – CR8030 – Heavy Duty Digital Keypad Door Lock with Clutch Technology – Passage Function – Grade 1
Features:
- Master PIN Code – Use for programming the lock and entering Manager and User PIN codes. Can also be use to open the lock and reset to factory settings.
- Manager PIN Code – Use to open the door with lock out mode. Also functions like a User PIN code. This feature can also program 3 one-time user codes.
- User PIN Code – This feature only opens the lock by entering the code on the touch pad. It won’t be able to program or change settings. This lock can accommodate up to 1000, 3 to 6 digits combined RFID and User PIN codes.
- One-Time User PIN Code – Can only be used once. This lock can store up to 3 one-time User PIN code simultaneously.
- Beep & LED Indicators – This indicators can either be programmed for different settings. This feature is useful in making sure that every keypress was successfully entered.
- Lock-Out Mode – This feature is enabled by the Master PIN Code. When enabled, It Retricts all User PIN codes and RIFD CARD / KEYFOB access except Master PIN code. The padlock icon will appear on the screen when the unit is in lock-out mode.
- Keypad Anti-Tamper Lock Out – This function will auto shut off the lock if an invalid code is entered 5 times in succession to prevent tampering.Master PIN Code – Use for programming the lock and entering Manager and User PIN codes. Can also be used to open the lock and reset to factory settings.
- Weather Resistant – CR8000 are manufactured making sure that internal electronic parts are protected from moisture, dust, water, and corrosion. All models are weather-resistant for temperature ranges of 30°F ~ 150°F (-35°C ~ +66°C)
- Non-Handed – The CR8000 can be installed for both left and right door opening.
- Passage Mode – Enabling passage mode allows continuous entry for non-restricted traffic. Passage mode can either be enabled or disabled by the Master Pin code. When in passage mode, the unlocked padlock icon will appear on the screen
Specifications:
| Applications | For Offices, Schools, Hospitals, Apartments, Condo units, Hotel/Motel, Residential, Commercial, and Public buildings. |
| Door Ranges | 1 3/8″ to 1 3/4 ” thickness. |
| Backset | 2 3/4″ standard or 2 3/8″, 3 3/4″ or 5″ optional backset. |
| Latch Faceplate | Standard 1 1/8″ x 2 1/4″ for 2 3/4″ backset. Optional 1″ x 2 1/4″ for 2 3/8″ backset. |
| Strikes | ASA Strike standard, T and full lip strike available on request. |
| ANSI Standards | Meets ANSI / BHMA A156.2 Series 4000 Grade 1 requirements. |
| Clutch | Clutch technology allows turning of lever without retracting the latch, thus prolonging the life of the lock by reducing stress on the spindle and other parts. |
| Power Supply | 4AA Batteries (comes standard in packaging). |
| Cylinder | 6-pin solid brass “Schlage C” keyway standard with two brass keys per lock. |
| Weather Resistant | All models are weather-resistant for temperature ranges of -30°F ~ 150°F (-35°C ~ 66°C). |
| Touch Screen | Responds to human touch enabling convenient entrance or access to the programming menu. After the operation has been completed, the lock reverts to sleep mode. |
| Keypad | 12 programmable buttons for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service codes. |
Download:
- CR8000 Template
- CR8000 Manual
